Underground Pipe Locating - Fast & Accurate Solutions

Accurate underground pipe locating is far more than a technical procedure—it's a crucial safety measure that protects lives and infrastructure. When excavation crews strike gas lines, water mains, or electrical conduits, the consequences can be catastrophic. Underground utility strikes cause over 2,000 injuries and 400 fatalities annually in the U.S., putting not just workers but entire communities at risk.

The financial implications are equally severe. A single utility strike can halt construction projects for days or weeks, causing budget overruns into the tens of thousands of dollars. Between repair costs, project delays, legal liabilities, and potential regulatory fines, the financial burden quickly becomes overwhelming for contractors and project owners alike.

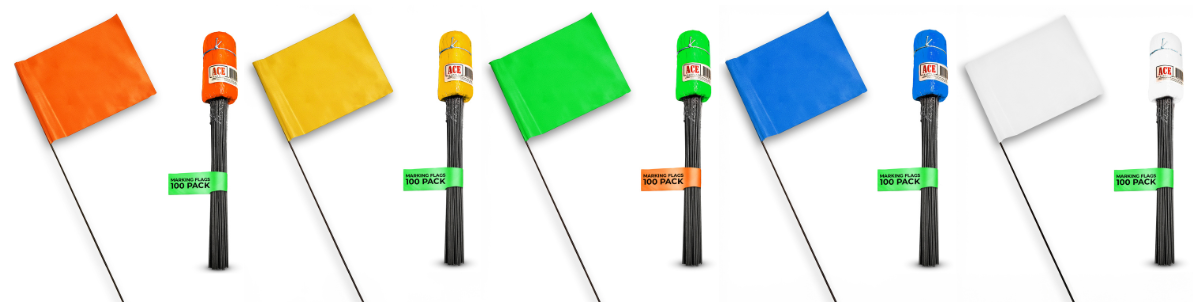

To streamline your underground pipe location process, consider using Ace Supply's Marking Flags. These vibrant, highly visible flags are vital for marking utility lines and ensuring that your team has clear visual cues during excavation. Using our marking flags can significantly decrease the likelihood of accidental utility strikes, protect workers on site, and maintain the integrity of your project timeline.

Also Read:

• Master Underground Cable Locating - Find Buried Lines Fast

• Landscaping in Construction: Transforming Projects Through Strategic Integration

Modern Methods and Technologies for Locating Underground Pipes

Underground pipe locating has evolved dramatically from the days of digging test holes and relying solely on outdated utility maps.

Electromagnetic Detection: A Primary Method

Electromagnetic detection remains the workhorse of underground pipe locating equipment, particularly for metallic utilities. This technology works by creating an electromagnetic field that interacts with conductive materials underground. A transmitter sends a signal that follows the path of metallic pipes, while a receiver above ground detects these signals to pinpoint location and depth.

Modern electromagnetic locators have become increasingly sophisticated, offering multiple frequencies to accommodate various field conditions and pipe types. These devices provide horizontal accuracy typically within 10% of the depth of the utility and depth accuracy often within 5-10% of the actual depth, up to approximately 3 meters under optimal conditions.

Ground-Penetrating Radar (GPR)

When dealing with non-metallic pipes or complex underground infrastructure, ground-penetrating radar becomes an invaluable tool. Unlike electromagnetic methods, GPR can detect underground pipes regardless of their material composition, making it essential for locating plastic water lines, concrete sewers, and other non-conductive utilities.

The high-end GPR systems offer high resolution with depth accuracy within ±6 inches for deeper utilities and within 10% of the actual depth in ideal settings. These systems typically penetrate up to 8 feet, with specialized antennas extending to 20+ feet depending on frequency and subsurface conditions.

Acoustic Methods and Their Applications

Acoustic technology offers a specialized approach to detect underground pipes, particularly pressurized water lines and leaking utilities. These systems work by detecting sound waves traveling through pipes or the sound of escaping fluid from leaks.

Acoustic pipe locators consist of sensitive microphones or accelerometers placed at access points or along the surface. These devices filter ambient noise and identify the distinctive sounds created by water movement or leaks, proving especially valuable when traditional methods fail due to interference from multiple nearby utilities.

Advanced RTK-Enabled Devices

Real-Time Kinematic (RTK) GPS technology has transformed the precision of underground pipe and cable locator systems. These advanced devices combine traditional locating methods with centimeter-accurate GPS positioning to create highly detailed utility maps that can be integrated into GIS systems.

The RTK-enabled locators consist of a detection unit coupled with a high-precision GPS receiver that records exact geographical coordinates as operators trace utility lines. This data becomes invaluable for future reference, reducing the need for repeated locating work and minimizing strike risks.

Radio Frequency Identification in Pipe Locating

RFID technology represents one of the newer innovations in the effort to accurately detect underground pipes. The system works by installing passive or active RFID markers along pipeline routes that contain information about utility type, depth, and other critical data.

RFID solutions provide near-perfect location accuracy and immediate access to utility specifications, regardless of pipe material, age, or surrounding utilities.

Technology Comparison Table

Step-by-Step Guide to Locating Underground Pipes

Finding what lies beneath the surface doesn't have to be guesswork. With the right approach and modern utility locator equipment, you can systematically identify underground infrastructure with confidence.

1. Assessing Your Needs and Choosing the Right Method

The first crucial step in any underground pipe location project is determining exactly what you're looking for and selecting the appropriate pipe finder tool for the job. Different utilities require different approaches, and choosing the wrong method can lead to missed pipes or false readings.

Start by asking key questions: What type of utility are you searching for? Is it metallic or non-metallic? How deep might it be? What are the soil conditions in the area? The answers will guide your equipment selection.

2. Understanding the Difference Between Public and Private Utilities

Before beginning any locating work, it's essential to know where public infrastructure ends and private utilities begin. This distinction affects both responsibility and methodology.

Public utilities typically include main water and sewer lines, gas mains, and primary electrical distribution systems that are maintained by municipal authorities or utility companies. These entities usually mark their lines when contacted through services like 811 (Call Before You Dig). However, data shows that approximately 25% of underground utility damages in 2022 resulted from excavators failing to notify the 811 system before digging.

Private utilities, however, are those that connect public mains to buildings or exist entirely within private property boundaries. These might include irrigation systems, private water wells, or electrical lines to outbuildings. In line with updated ALTA/NSPS standards from 2021, both public and private utility locates are now mandated during land title surveys to ensure comprehensive mapping.

3. Creating a Comprehensive Site Map for Pipe Locations

Documentation is a critical component of effective underground pipe locating. Creating a detailed site map not only helps with current work but serves as a valuable reference for future projects.

Advanced locating equipment integrates with digital mapping software and GPS systems, allowing you to create georeferenced utility maps that can be overlaid with satellite imagery or site plans for comprehensive documentation.

4. Using Marking Flags and Industry Standards

Once you've located underground pipes, proper marking becomes essential for on-site communication. The industry has developed standardized color codes for utility marking:

• Red: electrical lines

• Yellow: gas, oil, steam

• Orange: communication/fiber optics

• Blue: potable water

• Green: sewer/drainage

• Purple: reclaimed water

• Pink: temporary survey markings

• White: proposed excavation

Ace Supply USA provides a full range of professional marking flags that adhere to these industry standards, ensuring clear communication and compliance with safety protocols.

5. Executing the Scanning Process Effectively

With preparation complete, it's time to conduct the actual pipe detection work. The scanning process requires methodical execution and attention to detail to ensure no utilities are missed.

Conclusion

Underground pipe locating has evolved from an imprecise art into a sophisticated science backed by advanced technology and methodical processes. As infrastructure continues to grow increasingly complex beneath our feet, the importance of accurate utility detection cannot be overstated.

The stakes in this field remain extraordinarily high. With utility strikes increasing by 6% annually between 2021 and 2022, the need for proper equipment, training, and procedures has never been more critical. When underground pipe locating is performed with precision and care, it enables smooth operations, cost-effective maintenance, and infrastructure development that proceeds without dangerous and expensive surprises.

What makes modern pipe locating truly remarkable is the integration of multiple technologies and methodologies. This multi-layered approach provides the redundancy and verification essential for confidence in utility locations.

To further enhance the accuracy and efficiency of your underground pipe locating efforts, consider Ace Supply’s Marking Flags. These flags are designed to clearly mark identified utilities and help communicate vital information to teams on the ground. By using these flags, you can significantly reduce the risk of accidental utility strikes, ensuring that your operations remain safe and compliant. Take the next step in enhancing your marking and locating processes. Choose Ace Supply’s Marking Flags today!
